SS Series Wet Type Solenoid Operated Directional Control Valve (G01)

SS Series Wet Type Solenoid Operated Directional Control Valve (G01)
  • Recognized by reliable overseas safety standards such as CE (Europe), UL (U.S.A.) and CSA (Canada).
  • The power consumption of the DC solenoid (D* and E*) is reduced. This will further promote your energy saving policy.
  • An innovative fluid reaction compensating mechanism assures reliable valve switching. (Patent pending)
  • An expanded wiring space ensures easy wiring.
  • Redesigned terminal box improves waterproof properties.
    The terminal block has been modified to improve the insulation performance. (Conforms to overseas standards)
  • Interchangeable with conventional products (30 designs)
    The valve proper as well as such parts as a centralized terminal box and coil are interchangeable with the conventional ones in terms of a kit.
Page Top

Main text

SS Series Wet Type Solenoid Operated Directional Control Valve (G01)

Performance Curve


Pressure loss characteristics

Pressure loss characteristics



Type Flow path PA PB AT BT PT
SS-G01
SA-G01		 A2X, H2X, E2X d d - - -
A3X, H3X b b b b -
E3X b b b b -
A3Z, H3Z, E3Z a a a a -
A4, H4, C4 a a a a a
A5, H5�, C5�, C6S b b b b -
C1�, C1S b b a b -
C2 a b b b -
C6 b b a a -
C7Y f f e e c
C8 a f b e c
C9 a a b b -

Hydraulic oil viscosity 32mm2 /s{cSt}

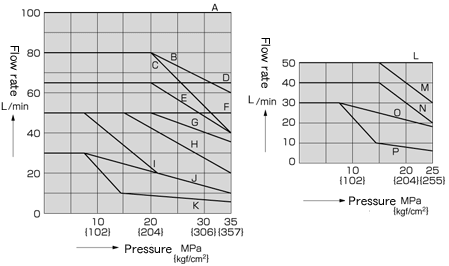

Permissible pressure - Flow rate valves

Permissible pressure - Flow rate valves Permissible pressure - Flow rate valves

Notes : 1.Description in parenthesis is given for an AC solenoid.

2.Description in parenthesis is given for the rectifier built-in type solenoid (E*) except for the quick return type, and for the power supply solenoid (D*) where a surge voltage absorbing diode is mounted on the electric circuit.


Pressure Mpa - Flow rate valves
Page Top

Main text

SS Series Wet Type Solenoid Operated Directional Control Valve (G01)

»specifications 02    »specifications 03


Type Standard type Shock-less type
JIS symbol Operation
symbol		 Max.working
pressure
MPa
{kgf/cm2}		 Max.flow
L/min		 Max.
working
pressure
MPa
{kgf/cm2}		 Max. flow
rate
L/min
JIS symbol A2X A2X 35
{357}		 30 25
{255}		 30
JIS symbol H2X H2X
JIS symbol E2X E2X
JIS symbol A3X A3X 80 50
JIS symbol H3X H3X
JIS symbol E3X E3X 100
JIS symbol A3Z A3Z 65
JIS symbol H3Z H3Z
JIS symbol E3Z E3Z
JIS symbol A5 A5 100
JIS symbol H5 H5
JIS symbol C2 C2
JIS symbol C5 C5
JIS symbol C9 C9
JIS symbol C1S C1S
JIS symbol C6S C6S
JIS symbol C1 C1 AC
Solenoid
65
DC
Solenoid
80
JIS symbol C6 C6
JIS symbol A4 A4 50 50
JIS symbol H4 H4
JIS symbol C4 C4
JIS symbol C7Y C7Y 40
JIS symbol C8 C8

Note : The maximum flow rate of each valve varies according to the pressure.
For details, see here.
