Single Direction Thrust Ball Bearings

  • Thrust ball bearings are designed to handle axial loads only.
  • Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.

Overview

Main text

Single Direction Thrust Ball Bearings

Single Direction Thrust Ball Bearings
  • Thrust ball bearings are designed to handle axial loads only.
  • Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.
  • The double Direction Thrust ball bearings can support bi-directional loads.
  • The bearings with spherical housing washer can prevent static misalignment.

Bearing series

Type Flat back-face type Spherical back-face type With aligning seat
Single-derection 511 - -
512 532 532U
513 533 533U
514 534 534U
29 - -
39 - -
O(*1) - -
TAM(*2) - -
TG(*2) - -
Double-direction 522 542 542U
523 543 543U
524 544 544U
(Note)
*1: Series O is inch-dimensioned.
*2: Series TAM , TG is extra-small and miniature.
Page Top

Design

Main text

Single Direction Thrust Ball Bearings

Single Direction Thrust Ball Bearings
  • Thrust ball bearings consist of ball, retainer, both shaft and housing washers which contain grooves for the balls, and can be subject to axial load only.
  • Since introduction of polyamide cages the level of noise substantially improved.

Single Direction Thrust Ball Bearings

Attention

  1. The design of Thrust Ball Bearing may not be subjected to any radial load.
  2. Thrust Ball Bearings are not suitable for high-speed rotation since lubricant is expelled by centrifugal force.
  3. When used on a horizontal shaft, a minimum axial load must be applied.
    Care must be taken in handling to prevent damage to the separable rings and ball assembly.
Page Top

Application

Main text

Single Direction Thrust Ball Bearings

Single Direction Thrust Ball Bearings

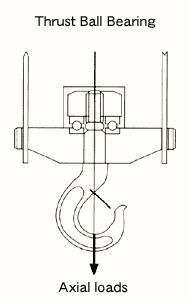

  • This bearing type is often used for crane hooks and other machine.

Applications

  1. Ball Thrust Bearings should use close to the radial bearing, in order to prevent the effect of shafts deflection.
  2. When using big size ball bearings on a horizontal shaft, preload should be implemented to prevent the clearance between housing washer and balls.
  3. Under the inevitable circumstances of shaft deflection and misalignment, aligning seat washer should be applied.
Page Top

Dimensions

Main text

Single Direction Thrust Ball Bearings

Dimension Table


  1. Single-direction Thrust Ball Bearings
    Bore Diameter 10 - 360mm
  2. Single-direction Thrust Ball Bearings series 2900
    Bore Diameter 10 - 140mm
  3. Single-direction Thrust Ball Bearings series 3900
    Bore Diameter 25 - 120mm
  4. Single-direction Thrust Ball Bearings Inch series
    Bore Diameter 9.525 - 152.400mm
