Small size Precision roll forming machines PFM-330E

Environment Friendly & Energy Saving

  • Motor drive (elimination of hydraulic system) reduced energy consumption.
  • Corresponds to semi-dry roll forming which requires no coolant.
  • Stable machining accuracy.
  • Compact and space saving.
  • Easy setup change.

Features

Environment friendly for energy saving
  • Motor drive (elimination of hydraulic system) reduced consumption energy
  • Correspond to semi-dry roll forming which requires no coolant

Stable machining accuracy

  • Adopted roller guide for slide, improved machine rigidity in light load area such as small module splines

Compact and space saving

  • World's smallest width 800mm compact design
  • Easy line setup change

Easy setup change

  • No need for adjusting tool setup, anyone can operate easily
  • Easy maintenance and check for small size machine

Performance

High machining accuracy m0.75 spline cumulative pitch deviation

[photo]

Specifications

Machine Specifications

Spec PFM-330E
Max. rolling dia. (mm) (Thread rolling up to M25) 20
Max. rack holder width (mm) 60
Max. rolling module m1.0
Max. rack length (mm) 346(13")
Opening section distance (mm) 90

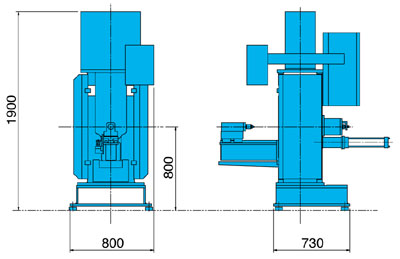

Floor space (mm x mm) 800 x 1,650
Mass of Machine (kg) 2,000

Accessories

Standard accessories

  • Lubrication unit
  • Tool kit

Special accessories

  • For work location:
    • Work center
    • Work temporally locator
    • Auto loading / unloading system
  • For tailstock:
    • Special stroke tailstock
  • For headstock:
    • Manual driven headstock
    • equipment with special stroke
    • NC headstock
  • For rack installation:
    • Forming rack liner
  • For mist coolant:
    • Mist coolant device
    • Mist collector
