Overview

Space saving

• The required machine space has been reduced to 55 percent. (as compared to our previous model).

Energy saving

• Power consumption by the machine has been reduced to 50 percent. (as compared to our previous model).

Improved maintainability

• Use of a self-lubricating device for the ball screw and linear guide eliminates the need for routine lubricating oil management.

Improved Productivity

• Film can be changed and recovered from the front of the machine.

Flexibility

• Simultaneously working on pins and journals means this high performance machining system makes it easy to change the setup for crankshafts with different specifications.

Specifications

Work piece (crankshafts)
Length	350 to 650
Diameter (mm)	Max.Ø95
1/2 stroke (mm)	Max.51.5
Width (mm)	15 to 50
Supported pitch (mm)	31 to 51.5
Arm unit
Number of arms	Max.11

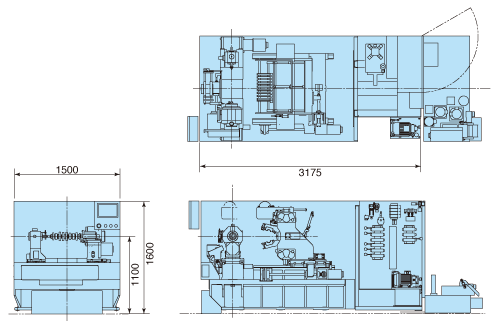

Machine dimensions
Width by depth	1,500 x 3,175
Height (mm)	1,600
