Aqua REVO Oil Hole Drill Series

Longer tool life by increased coolant amount through the new development of REVO Power Cooler Oil-Hole material

  • Optimized Oil-Hole geometry "REVO Power Cooler" adoption.
  • Excellent function of Cooling, Lubrication, and Chip evacuation.
  • Applicable for a wide range of materials, such as Stainless steel to High hardened material.

Outline

Main content

AquaREVO Drills Oil-Hole

AquaREVO Drills Oil-Hole

Optimized Oil-hole geometry REVO Power Cooler adoption

  • Coolant amount is 2 times than conventional.
  • Achieved excellent cooling and lubricant performance furthermore, best chip evacuation.

Longer tool life

  • New development Carbide Oil-hole material with high toughness and hardness.
  • New development REVO-D coating.

Wide range response

  • Apply for wide range material, such as Stainless steel to High hardened Material.
  • Achieve great performance with high speed and high feed drilling.

Features & Performance

Main content

AquaREVO Drills Oil-Hole

New Oil-Hole design REVO Power Cooler

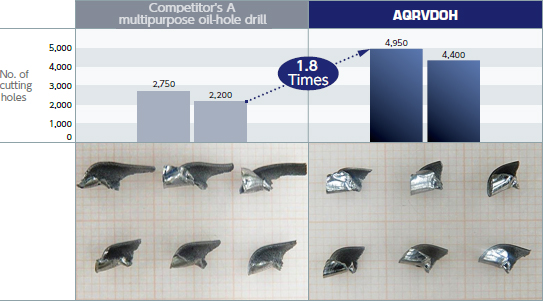

Carbon steel (S50C), Comparison Tool Life with conventional condition

Diameter : Ø8.0 Work material : S50C (180HB) Cutting Speed : 120m/min Feed Amount : 0.254mm/rev
Depth of Hole : 40mm (5Dc) Machine : Vertical M/C Cutting Fluid : Water-soluble

Double Tool Life than competitor
AquaREVO Drills Oil-Hole�s chip is smaller than competitor

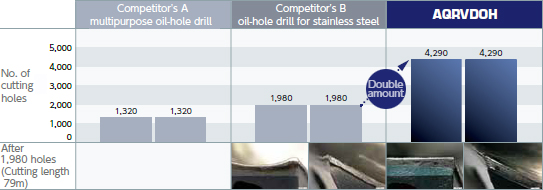

Although it is a multi-purpose drill, even compared to the drill for Stainless steel, more than twice as much drilling

Diameter : Ø8.0 Work material : SUS304 Cutting Speed : 80m/min Feed Amount : 0.20mm/rev
Depth of Hole : 40mm (5Dc) Machine : Vertical M/C Cutting Fluid : Water-soluble

List Numbers

  • L9864 3D (JIS) – Metric
  • L9872 3D (DIN) – Metric
  • L9873 3D (DIN) – Fractional
  • L9866 5D (JIS) – Metric
  • L9874 5D (DIN) – Metric
  • L9875 5D (DIN) – Fractional
  • L9868, L9868D 8D – Metric
  • L9869 8D – Fractional
