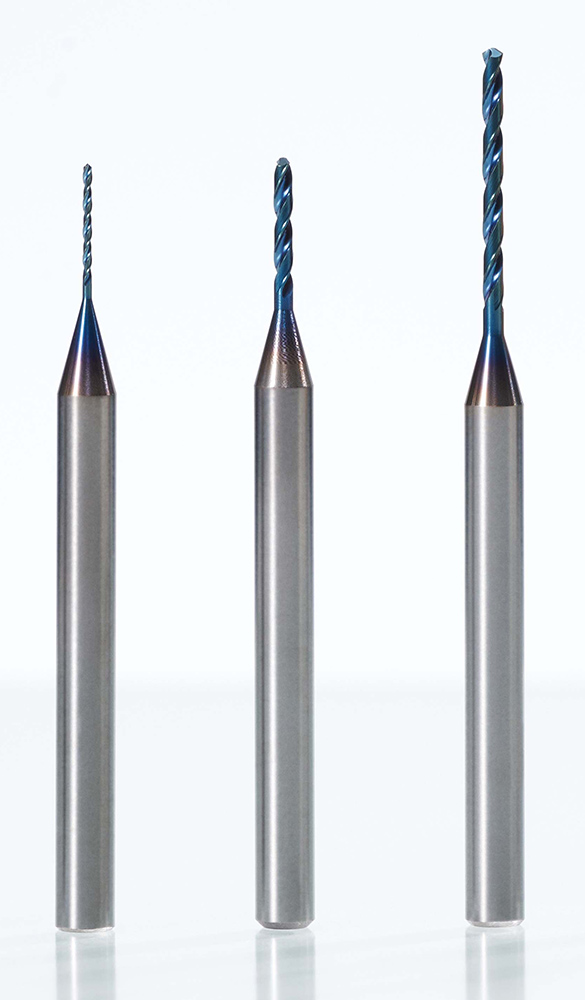

AQUA REVO Drill Micro Series

New lineup of small diameter sizes has been added while maintaining “Long tool life”, “High efficiency”, and the “Multipurpose” aspects of the AquaREVO Drill series

  • Achieves “high durability” and “stable cutting with little dispersion” required for small-diameter drills.
  • Newly developed carbide material has improved both hardness and durability with the original component design for micro drills.
  • Achieves a drill that is hard to break with a flute shape that emphasizes rigidity and chip evacuation.

Outline

Main content

AquaREVO Drills Micro

AquaREVO Drills Micro

Many problems can arise when drilling with micro diameters;

  • Low tool life with high risk of sudden breakage
  • Unstable machining due to variations in hole position

AquaREVO Drills Micro solves those problems with confidence.

An ultra-fine grain cemented carbide was adopted along with original component design to develop a durable substrate for small diameter drills. This provides a material that surpasses the conventional AquaREVO Drills in toughness and hardness.

In order to prevent sudden breakage due to chip jamming, a flute shape that provides optimal web thickness, chip evacuation, and tool rigidity has been adopted.

The coating is a REVO-D coat optimized for micro drills. An ultra-smoothing polishing process reduces resistance during cutting and improves chip evacuation.

Achieves “Long tool life that is hard to break” and “stable cutting with little dispersion” required for small-diameter drills.

Catalog Download


PDF Catalog No.2203-2 AquaREVO Drills Micro (8 pages/831 KB)

The listed price applies to consumers in Japan.

Page Top

Features & Performance

Main content

AquaREVO Drills Micro

Material

Newly developed carbide material for micro drill that is hard to break. Both hardness and toughness are improved by using ultra-fine particles carbide and original component design.

Geometry

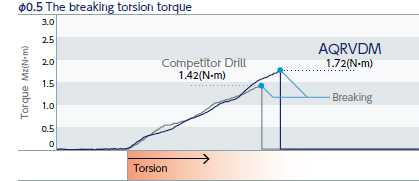

Achieves a drill that is hard to break with a flute shape that emphasizes rigidity and chip evacuation. AquaREVO Drills Micro has 1.2 times the breaking torque of competitor�s Drill.

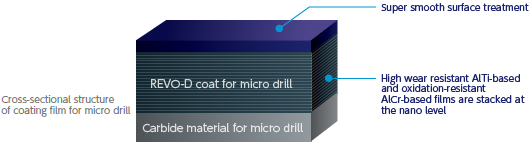

Coating

Stable tool life with accurate film thickness control even with a small diameter drills. Super smooth surface treatment reduces resistance during cutting and improves smooth chip evacuation.

Page Top

List Numbers

  • L9878 5D
  • L9880 10D
